SIM RACING PEDALS – FEATURES
EASY TO BUILD
This DIY Sim Racing Pedals building kit has been designed to be easy to build without expensive tools or advanced knowledge!
ACCURATE
The sim racing pedals offers accurate realism, with a feeling adapted to each pedal (degressive clutch, soft and hard two-phase brake, linear accelerator).
WELL DESIGNED
The design was very well worked, with shapes inspired by those used in real cars. The 3D Printed edition is just as pretty as the standard metallic version.
ADJUSTABLE
The load cell pedals have been designed to allow a maximum of adjustments! You can adjust the angle, hardness, stop and positioning of each pedals according to your feeling.
SAVE MONEY
The pedals can be made on a small budget, depending on the parameters you have chosen (choice of material, electronics…) and the equipment you have (3D Printing machine, CNC Machine…).
FREE ASSISTANCE
In the event of an issue, the customers will receive free assistance in the “Help & Questions” section.

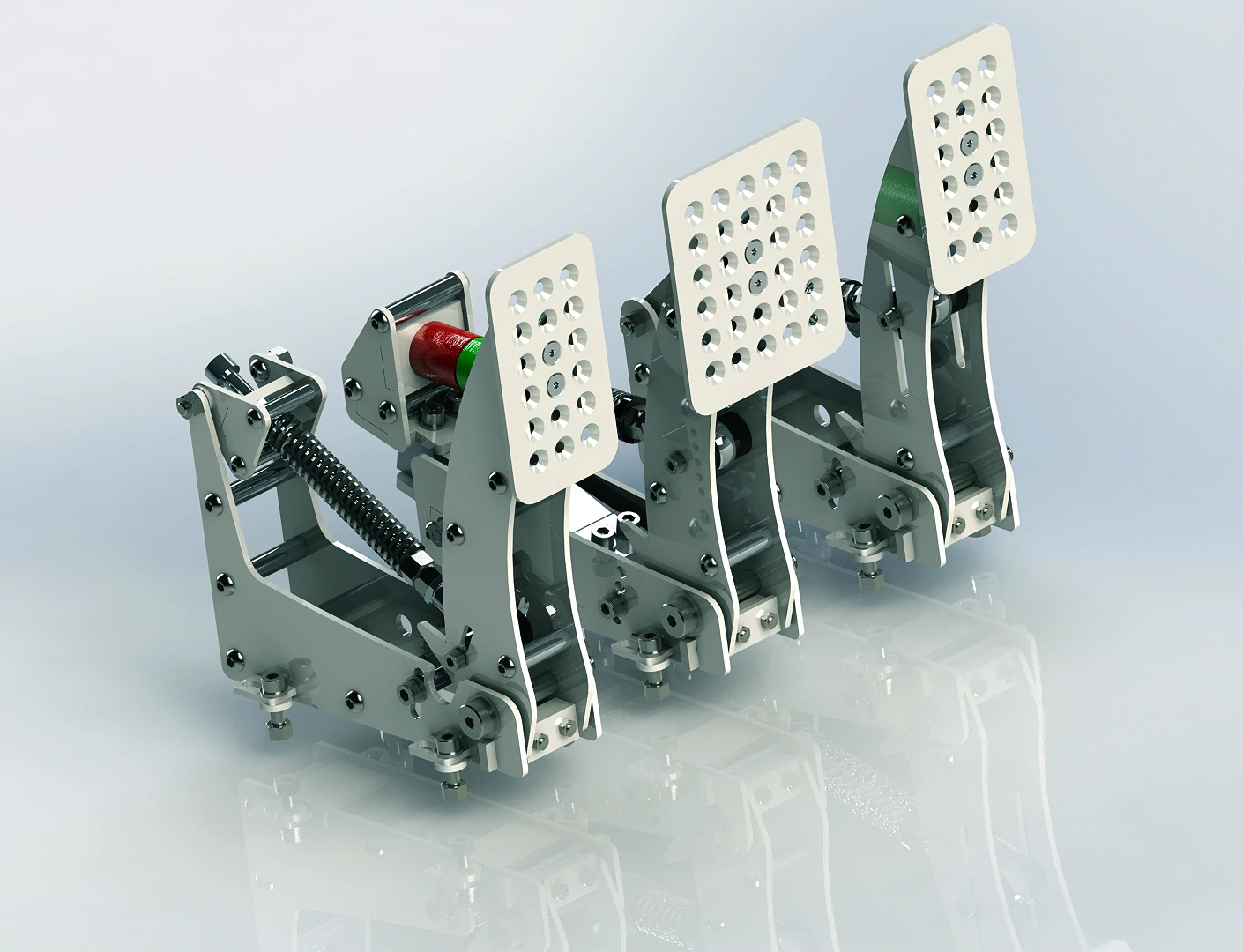

SIM RACING PEDALS SET
THROTTLE PEDAL

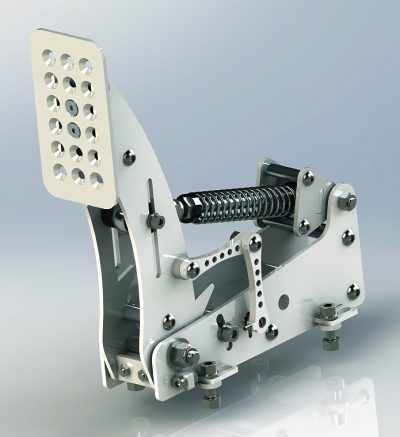

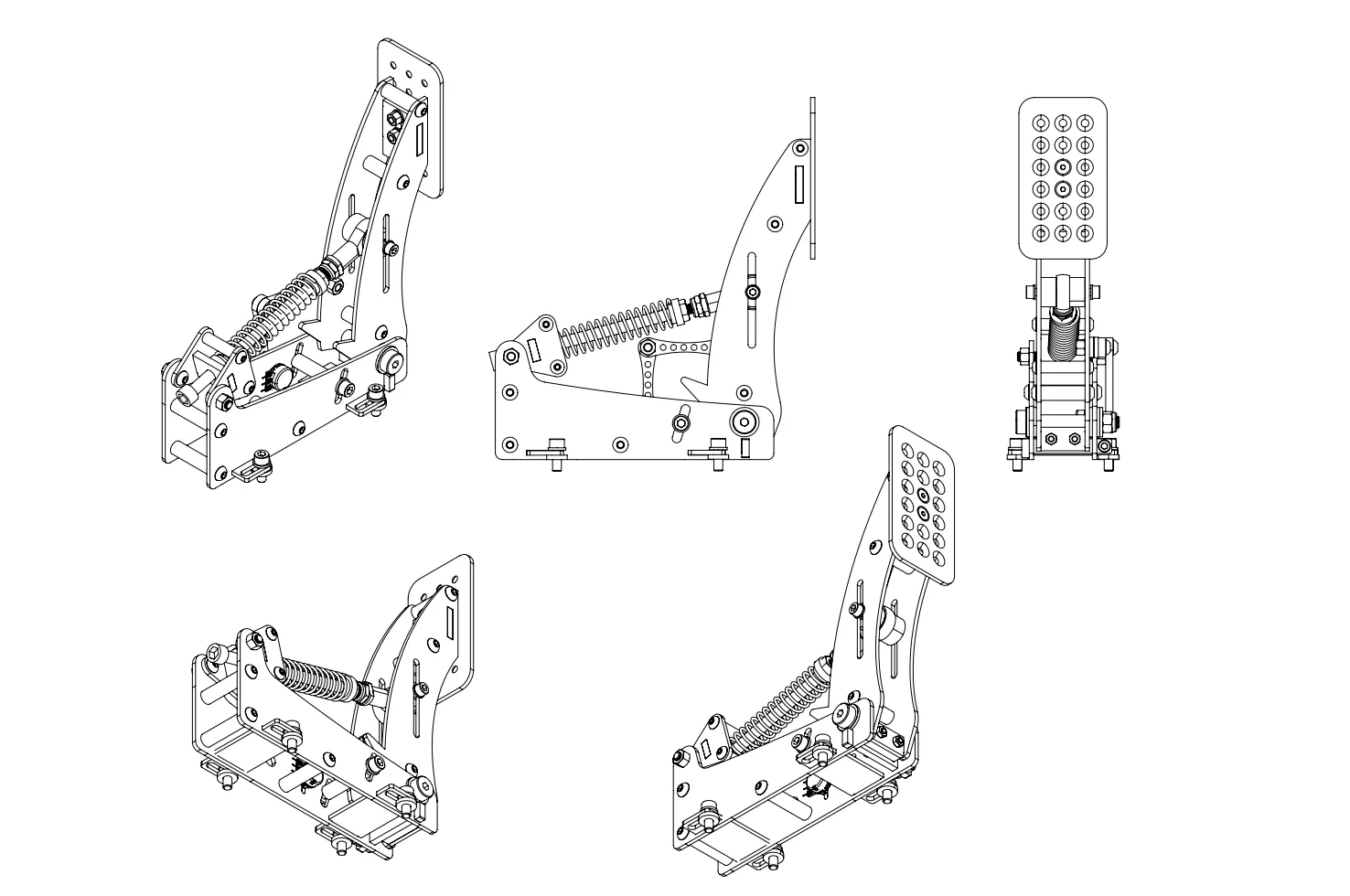

The throttle pedal is linear, you can adjust the hardness, angle, stop and the footrest position.
Concerning electronics, it’s a potentiometer fixed by two levers with a very solid structure.
BRAKE PEDAL
Load cell pedals provide precise and realistic braking force, improving your control and immersion in the game.

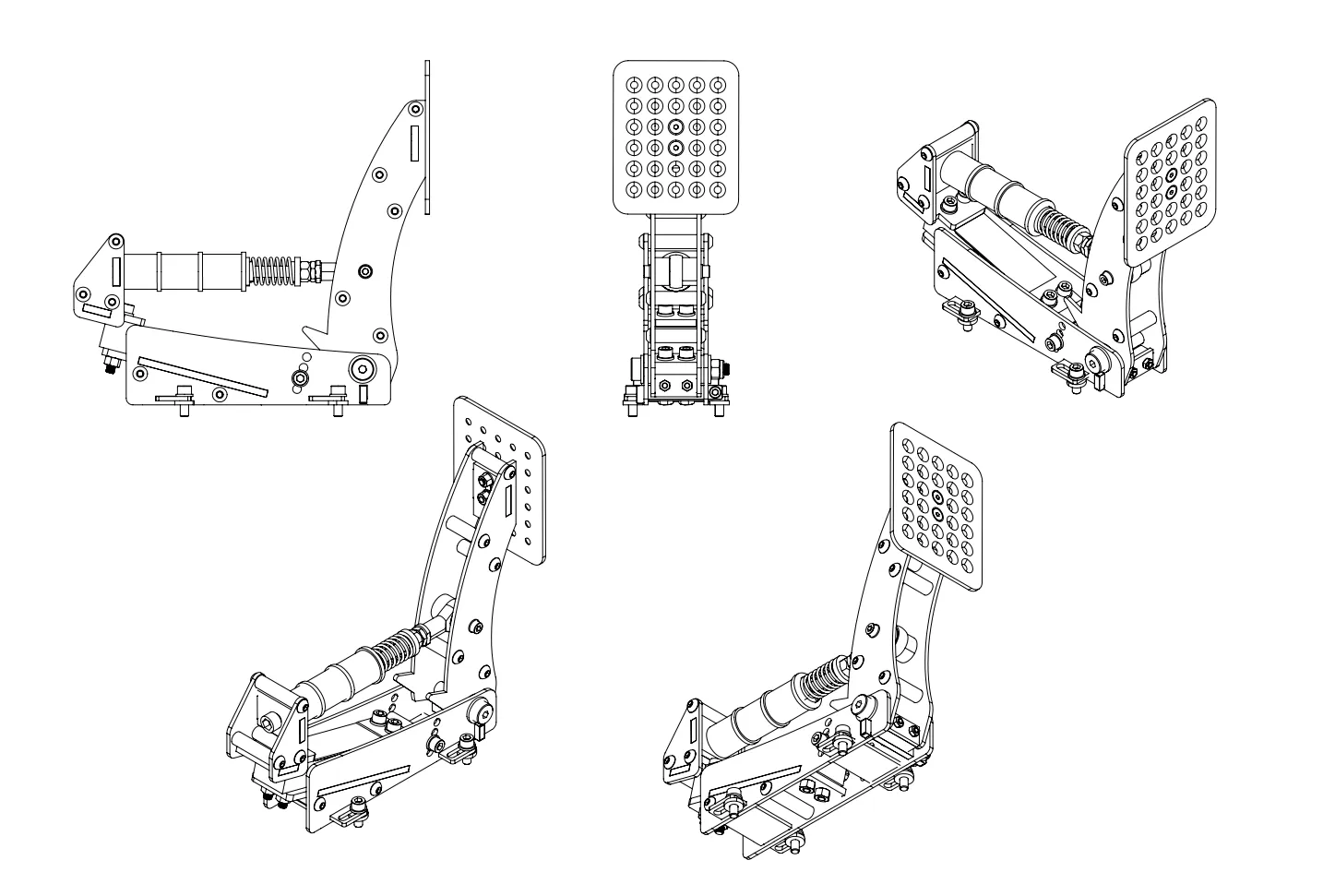

The brake is made up of one spring and many elastomers which enables the two stages of braking: soft then hard. The feeling is adjusted by changing the combination of elastomers and/or by tightening the spring. The technology is similar to the Handbrake Load cell.
The pedal is designed to take more than 100kg of pressure!
Concerning electronics, it will be a 120kg pressure sensor.
CLUTCH PEDAL

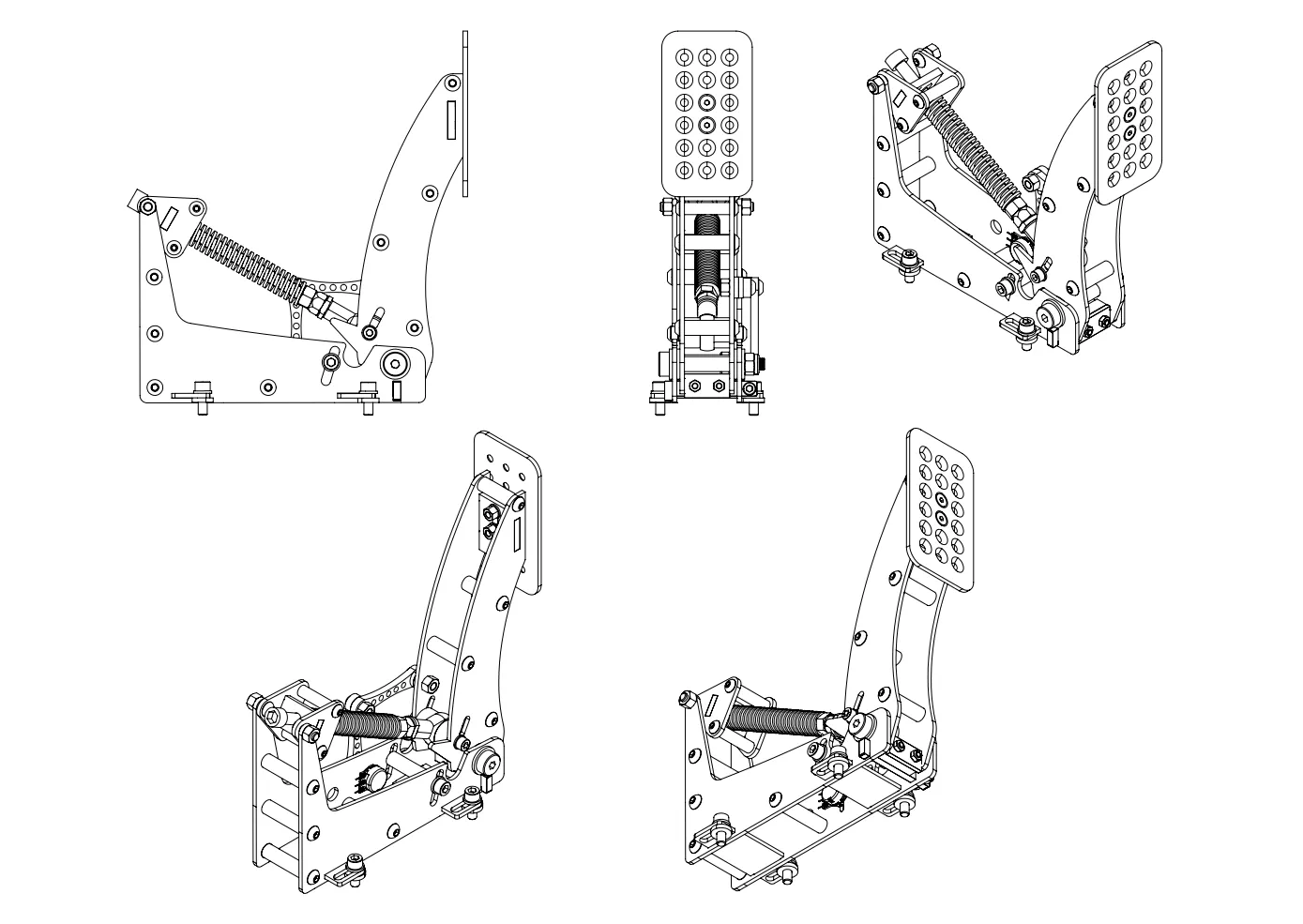

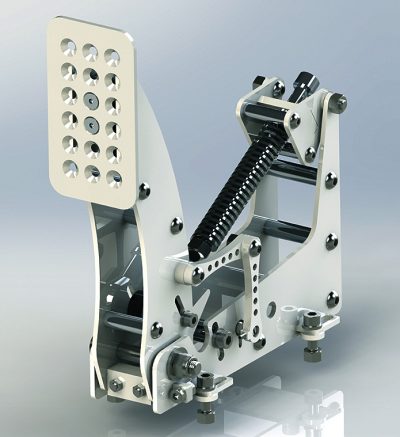

The clutch is almost similar to the throttle, but has a degressive mechanism allowing to simulate the clutch of a real car (only the 3D Printed Edition is linear).
REVIEWS OF THE SIM RACING PEDALS
“Considering this pedal set would only be about 300 bucks, I was shocked on track results.” – Shaun Cole (The SimPit)
“In regards to the 3D printed version I will say I try to beat these up so hard, I smashed on them, I really figured they would break they just didn’t in my testing.” – Shaun Cole (The SimPit)
IN-GAME TRIAL
HOW TO MAKE YOUR SIM RACING PEDALS
BUILDING OF THE 3D PRINTED SIM RACING PEDALS
How to make a DIY Load Cell Pedals
Would you like to make your own DIY Sim Racing Pedals for your Sim Racing Setup ? You are in the right place.This tutorial provides step-by-step instructions to help you build high-quality and customizable 3D Printed Sim Racing Pedals.
The building of this pedal is quite easy. If you love crafts and DIY, you will have a great time making it.
ADDITIONAL TUTORIALS
Parts buying guide: Springs and Elastomers
- Throttle Spring [Quantity 1] [Option: Length: 90mm, Diameter: 20mm]
- Throttle Spring alternative 1 [Quantity 1] [Option: length 90mm, Diameter 20mm]
- Throttle Spring alternative 2 [Quantity 1] [Option: Color: yellow, Specification: 18x9x100]
- Brake Spring [Quantity 1] [Option: Length 30mm, Diameter 20mm]
- Brake Spring alternative 1 [Quantity 1] [Option: Length 30mm, Diameter 20mm]
- Brake Spring alternative 2 [Quantity: 1] [Option: Color: yellow, Specification: 18x9x40]
- Clutch Spring [Quantity: 1] [Option: Color: Brown, Specification: 18x9x100]
- 3D Printed Edition Clutch Spring [Quantity 1] [Option: Length: 90mm, Diameter: 20mm]
- Bushing/Elastomers [Quantity: 2 minimum] [Option: 85A or/and 90A]
- Alternative link for Elastomers #1
- Alternative link for Elastomers #2 [Quantity: 3 minimum] [Option: D25/8,5x25mm]
- Alternative link for Elastomers #3
- Alternative link for Elastomers #4
- Alternative link for Elastomers #5
- Solution-elastomeres [Options: Length 250mm, External diameter Ø32mm, Internal diameter Ø8,5mm, Shore/Hardness 80-90-99]
Electronics SHOPPING LIST
POTENTIOMETERS AND LOADCELL

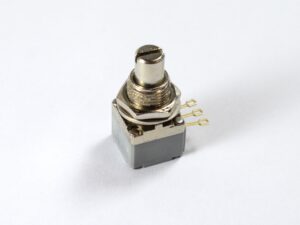

- P260 potentiometer [Quantity: 2]
- Potentiometer 2 [Quantity: 2] [Option: 10k Ohm] Note: you need M8 washer to fix this potentiometer
- Brake Loadcell [Quantity: 1] [Option: 120kg]
USB BOARDS (only one of them is mandatory)

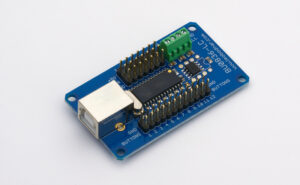

- Leobodnar BU0836-LC 12-bit [Quantity: 1]
- Leobodnar LC-USB 16-bit [Quantity: 1]
- USB Type A to B for Leobodnar and DSD boards [Quantity: 1]
- DSD 12 Bit Controller [Quantity: 1] [Option: 12 Bit Controller with AMP]
- DiyMore Arduino Leonardo board [Quantity: 1] Note: only with HX711 Loadcell Amplifier
- Micro USB cable for DiyMore Arduino Leonardo board [Quantity: 1] [Option: 3m]
- Arduino Pro Micro [Quantity: 1] [Option: Mini USB 3-6V] Note: only with HX711 Loadcell Amplifier
- Mini USB cable for Arduino Pro Micro board

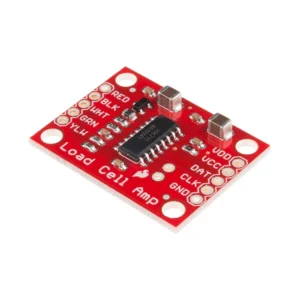

- HX711 Amplifier (Option: Standard Board)
- Alternative Sparkfun HX711 Loadcell Amplifier [Quantity: 1]
SIM RACING PEDALS WIRING
- Shielded cable for Potentiometers [Quantity: 1] [Option: 3 cores 5 meters]
- 28AWG Cable recommanded for Arduino Pro Micro [Quantity: 1] [Option: 28AWG (3Cores) – 5 meters]
- Dupont wire cable 1 [Quantity: 1] [Option: 30cm, 3P]
- Dupont wire cable 2 [Quantity: 1] [Option: 40cm male to female]
- Weatherproof Heat Tube [Quantity: 1]
- Aviation Circular Connector GX12 [Quantity: 3] [Option: 3P for Throttle and Clutch, 4P for Brake]
- Metal Cable Gland M12 [Quantity: 3] [Option: M12X1.5 For 4-8mm]
ALTERNATIVE CASES FOR THE USB BOARD
Tools SHOPPING LIST
MACHINING
- High quality flute Mill Cutter for Countersunk hole [Quantity: 1] [Option: 90°, one 1 Flute, 20.5mm] Note: for aluminium Foot plate
- Midrange flute Mill Cutter for Countersunk hole [Quantity: 1] Note: for aluminium Foot plate
- Metric thread Tap and Die [Quantity: 1] [Option: 12pc]
- 2.5mm Cobalt Drill Bit for the M3 potentiometer thread[Quantity: 1] [Option: 2.5mm]
- Pipe Cutter for Elastomer cutting [Option: 0-32mm, Scissors]
3D PRINTER
- CREALITY 3D Printer Ender-3
- AnyCubic Photon Mono X
- AnyCubic Kobra 2 Neo
- PLA Filament 1.75mm
- PLA Filament 1.75mm alternative
SANDING AND POLISHING
- Electric sander
- 125mm sanding discs
- Coton polishing wheel [Quantity: 1] [Option: Cylindrical 60mm]
- FFP2 Face mask
- Metal polish
- Polishing bar
- Plastic brush for cleaning (after polishing)
- Paint brush
LOAD CELL PEDALS ASSEMBLY
- 3 Hex Wrench Spanner [Quantity: 1] [Option: 3-4-5mm, 4-5-6mm]
- Allen Hex key [Quantity: 1] [Option: flat head]
- Alternative Allen Hex key
- Screw driver hand tool
- LED Flash light
SIM RACING PEDALS SOLDERING
- Electric soldering iron
- Soldering station 1
- Soldering station 2
- Soldering wire
- Soldering dross
- Soldering tweezers
- Wire cable stripper
- Wire cable stripper 2
- Metal soldering holder
- Plastic soldering holder
SIM RACING PEDALS Required Screws
ALIEXPRESS SCREWS:
- Pandametal Screws Store: most of what you need is here.
- Axis Shoulder Bolt [Quantity: 3] [Option: D10x8, 50mm]
- Noise absorber for the Pedal stop [Quantity: 1] [Option: Black or Blue or Red 10mm]
- M5x30 spacers for the Female rodend and the Throttle/Clutch Spring support [Quantity: 4] [Option: M5x30]
- M6x30 and M6x40 spacers for Fixed and Mobile parts [Option: M6x30, M6x40]
- M8 Female Rod end [Quantity: 3] [Option: SI8TK M8 Right]
- Flat head Screws
- M8x150 and M8x170 Semi-threated screws
- M8x150 and M8x170 Semi-threated screws (alternative link)
- M8 Washer Super Large for the Brake Elastomers [Option: M8(10PCS)316]
SIM RACING PEDALS Parts compatibility
You can use other parts to build this load cell pedals (apart from those listed in the required parts section), but you will need to check that they are compatible.
POTENTIOMETERS
- Ohm: 10k is recommended, but 100k can also work (it depends at the USB Board).
- Thread: between Ø6mm and Ø9mm
- Shaft diameter: not to exceed Ø7mm
LOADCELL
Weight: not below 100kg.
Loadcell dimensions:
ELASTOMERS
- ØInside diameter: min. 8mm, max. 10mm
- ØOutside diameter: not to exceed 35mm.
SPRINGS
- ØInside diameter: not below 8.5mm
- ØOutside diameter: not to exceed 28mm
If you use springs with different dimensions, I advise you to create the spring centralizer part. You will need to download Freecad (it’s a free software) and read the tutorial that is provided.
Everything is in the Alternative spring centralizer folder.
ALTERNATIVE FOOTREST:
Material of the Sim racing pedals
LASER CUTTING
As for the Sim racing sequential shifter, I recommend stainless steel.
For the few parts that need to be machined, I recommend aluminum because it is softer.
The parts that require machining are the following:
- Countersinks holes for the Footrests
- Two holes to drill and tap for the potentiometer levers
All these machining operations can be avoided if you use 3D printing alternatives.
3D PRINTING
I recommend PLA or ABS, the filling will vary according to the pieces, and it will be indicated in the name of the files. Here are recommendations for printing 3D solid parts.
HAND CUTTING AND CNC MACHINING
I recommend aluminum because it is a soft metal that is easy to work with.
How to get the required materials
LASER CUTTING
I advise you to use the 3mm and 5mm “All-in-One” DXF files and request a quote from laser cutting companies near your home. All parts are flat, there are none to bend.
So you can compare prices and choose the most profitable. On average, the asking price for cutting a stainless steel pedal is between €100 and €150 including VAT and shipping. You can save money if you make a combined order.
For France and Europe, I recommend the company ALPM. They provide a very good quality cut for a reasonable price.
3D PRINTING
You can buy a 3d printer or find a 3d printing service like treatstock. Don’t forget the infill percentage if you want a strong product (especially for the brake pedal). The longest part that need to be printed is 220mm.
HAND CUTTING
You need only sheets of papers, printer and Aluminium plates!
CNC MACHINING
I recommend CNC Machining only if you own a CNC Rooter, otherwise it is not economically profitable enough compared to laser cutting.
SCREWS
Bolt depot, Motedis and FixnVis.
Tolerances
- Laser cutting DXF files and CNC Machining files: 0.2mm
- 3D Printing: 0.6mm
