Description

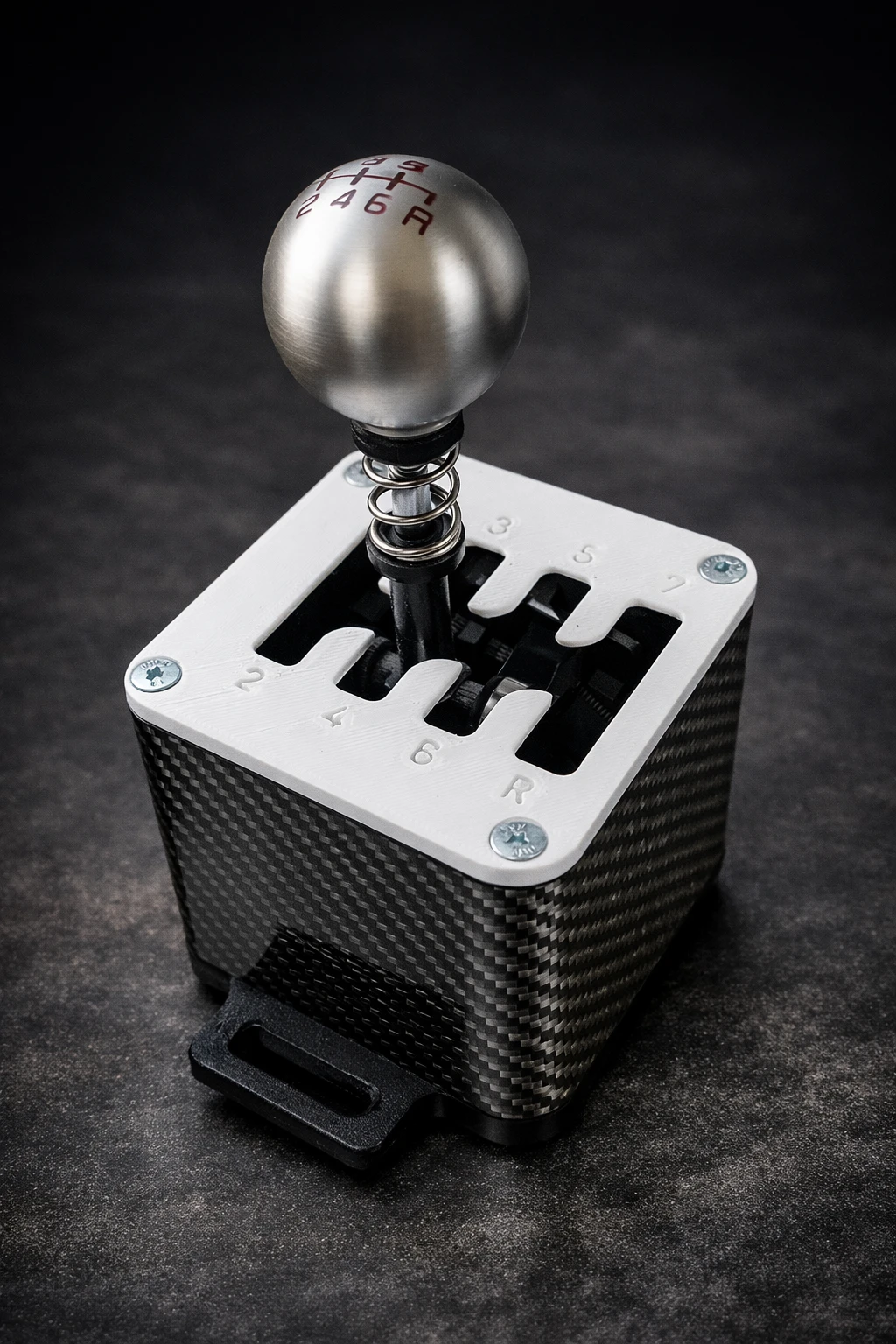

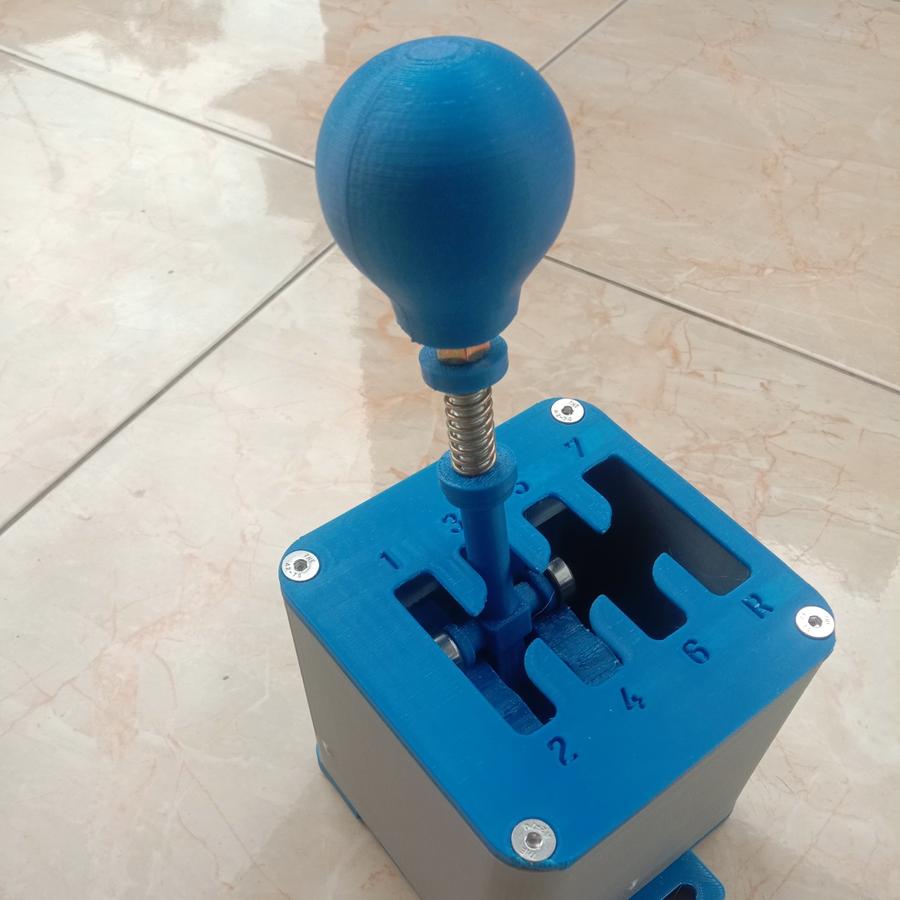

Why Choose Our DIY 3D Printed H Shifter
EASY TO BUILD
The DIY 3D Printed H Shifter is designed for makers of all skill levels.
No pricey tools. No complicated steps. Just follow the clear build guide and assemble your own H-pattern shifter with confidence.
And if you ever run into a snag, our Help & Questions tab or Email contact offers fast, free support to get you back on track.
Strong & Customizable
Dial in your perfect setup with full customization options:
- Adjust the lever stiffness
- Swap between 5-speed, 6-speed, or 7-speed plates
- Change the knob style
- Choose front or side mounting for your rig
No Need To Spend A Fortune
Enjoy the building of your H-Shifter without overspending. Depending on your chosen materials, electronics, and equipment like a 3D printer, this project can be built on a tight budget.
You can find many of the required parts in the BOM & Sourcing Guide (links verified and regularly updated).
ELECTRONICS
- Quantity: 1
- Option: Micro USB
- Note: compatible only with HX711 Loadcell Amplifier
SPRINGS

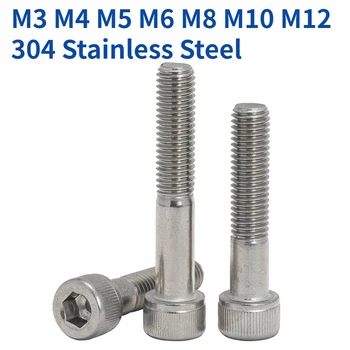

HARDWARE SCREWS
FINISHING

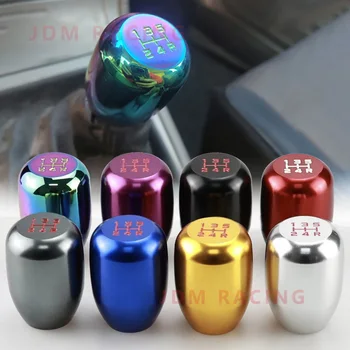

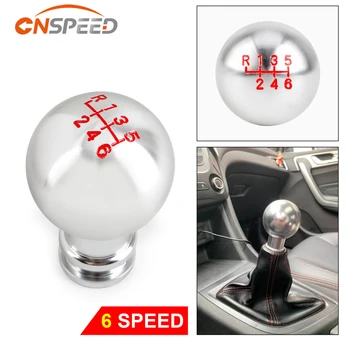

ALTERNATIVE KNOB
ASSEMBLY AND SOLDERING
3D PRINTING
DIY 3D H PATTERN SHIFTER MANUAL
- You are going to download a file (the CAD models of this H Pattern Shifter), we don’t sell physical product
- After your download, you will be able to get your file in your member area (Account > Downloads)
- This product is protected by Licence. You are not authorized to sell or share it.
3D Printed H Shifter – Parts compatibility
You can use other parts to build this H Pattern Shifter (apart from those listed in the required parts section), but you will need to check that they are compatible.LEVER SPRING
- ØInside diameter: not below 8.5mm
- ØOutside diameter: not to exceed 18mm
SIDE TENSION SPRINGS
- ØWidth: 40mm and 45mm
- ØOutside diameter: not to exceed 8m
Material of the 3d printed gear shifter
3D PRINTING
As for the Sim Racing Sequential Shifter, I recommend PLA or ABS. For the infill, I recommend a minimum of 20%. Here are recommendations for printing 3D solid parts.
Looking for high-quality 3D printing services? With Treatstock, you can easily get instant quotes from professional manufacturers worldwide. Upload your design today and get your free, no-obligation quote in minutes! 👉 Get Your Quote Now
How to get the required materials
3D PRINTING
You can buy a 3D printer, or find a 3D printing service like treatstock.SCREWS
Bolt depot, Motedis and FixnVis.Tolerances
3D Printing: 0.6mmCOST ESTIMATE OF THE 3D PRINTED H-SHIFTER
| Pieces | Cost |
|---|---|
| Screws (bolts, washers, nuts...) | $5 |
| M8 Female Rod End | $2.43 |

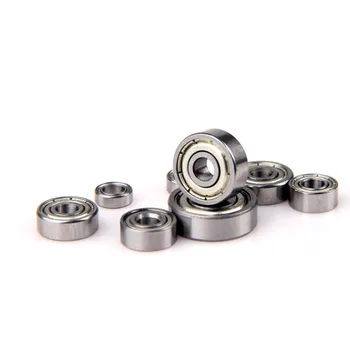

| Bearings | $3.69 |
| Springs | $10,50 |
| Electronics | $7 |
| 3D Printing (if you own a 3D printer) | $5 |
| TOTAL | Min: $30 - Average: $43 - Max: $60 |
